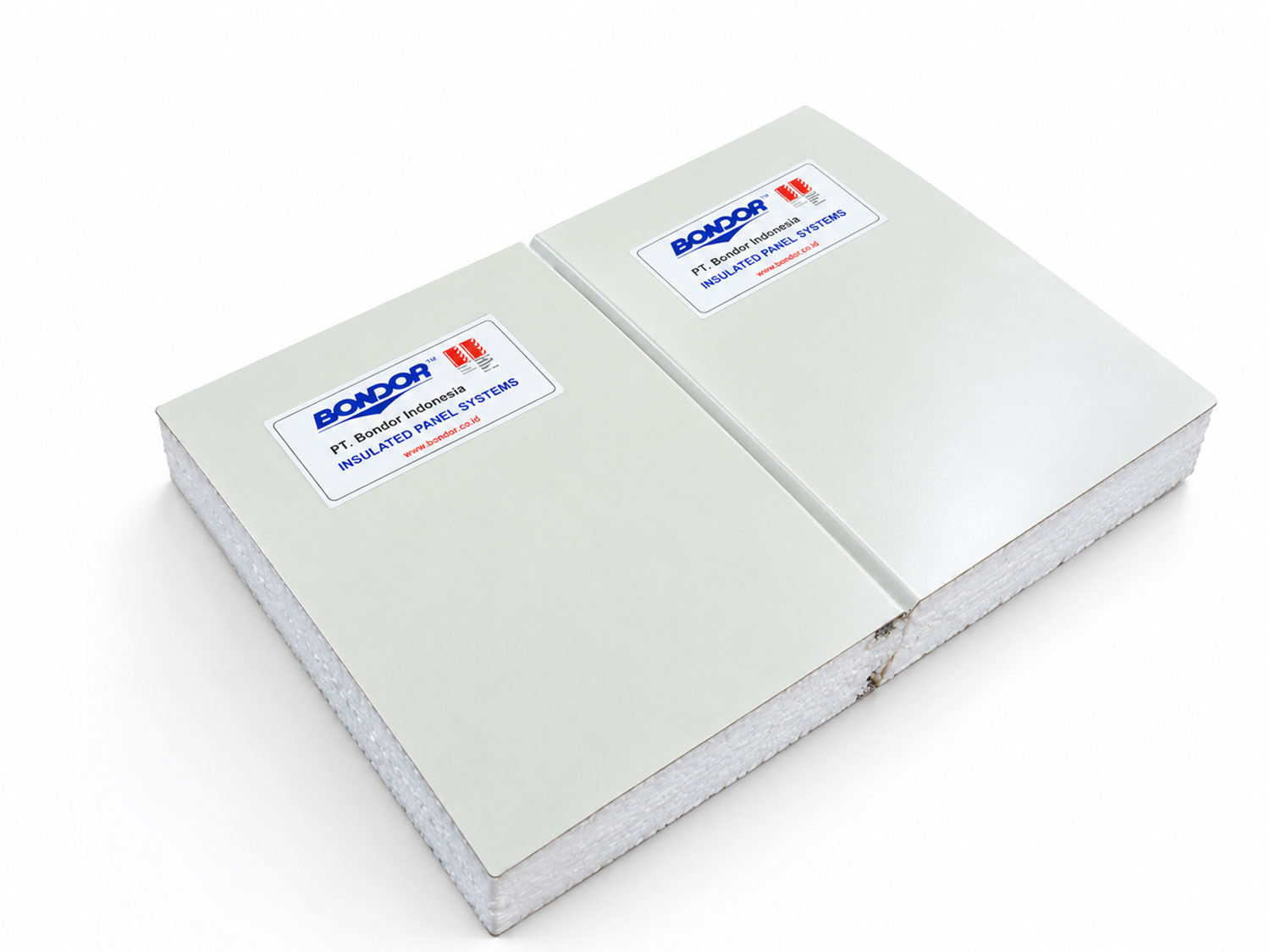

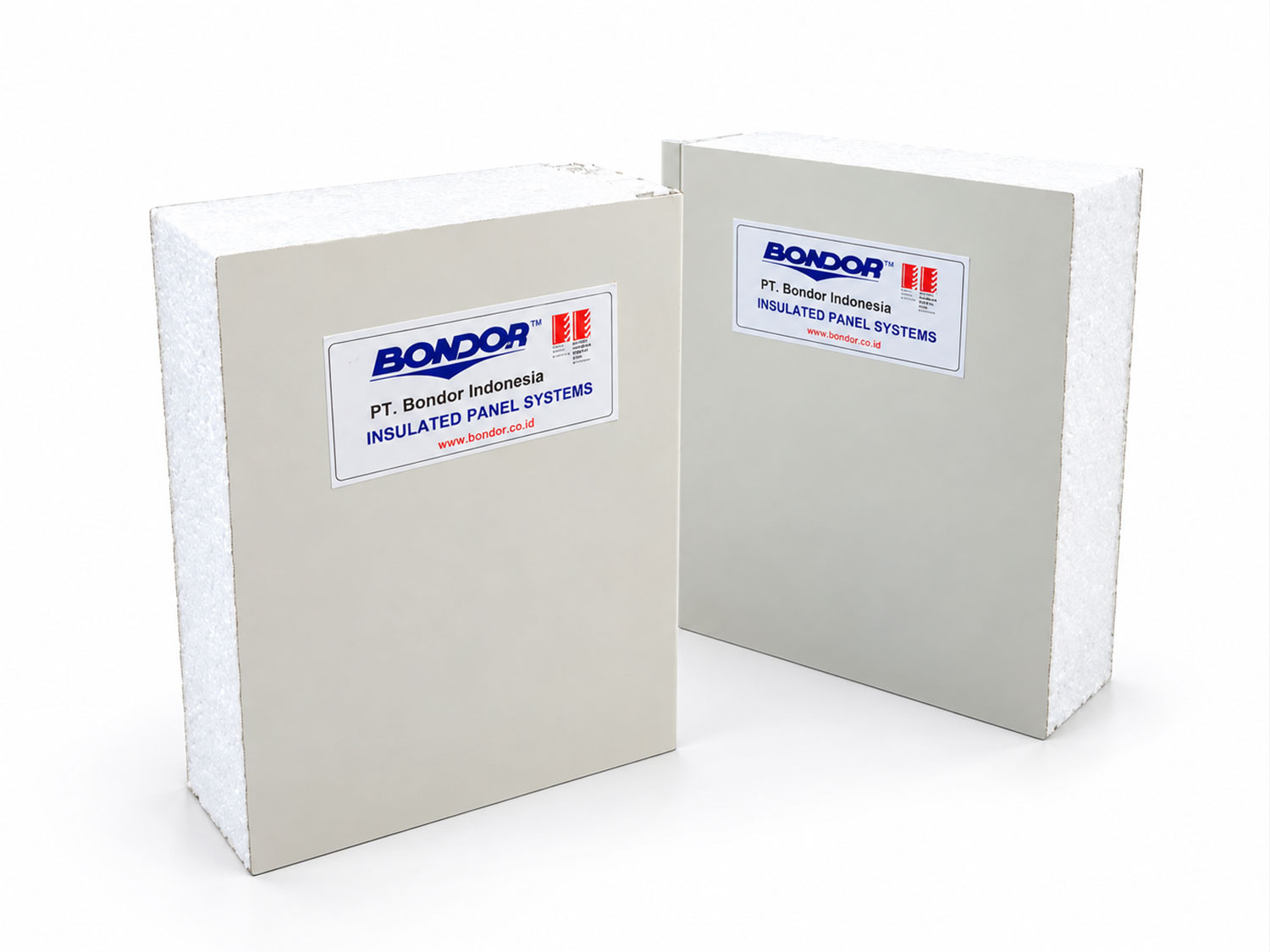

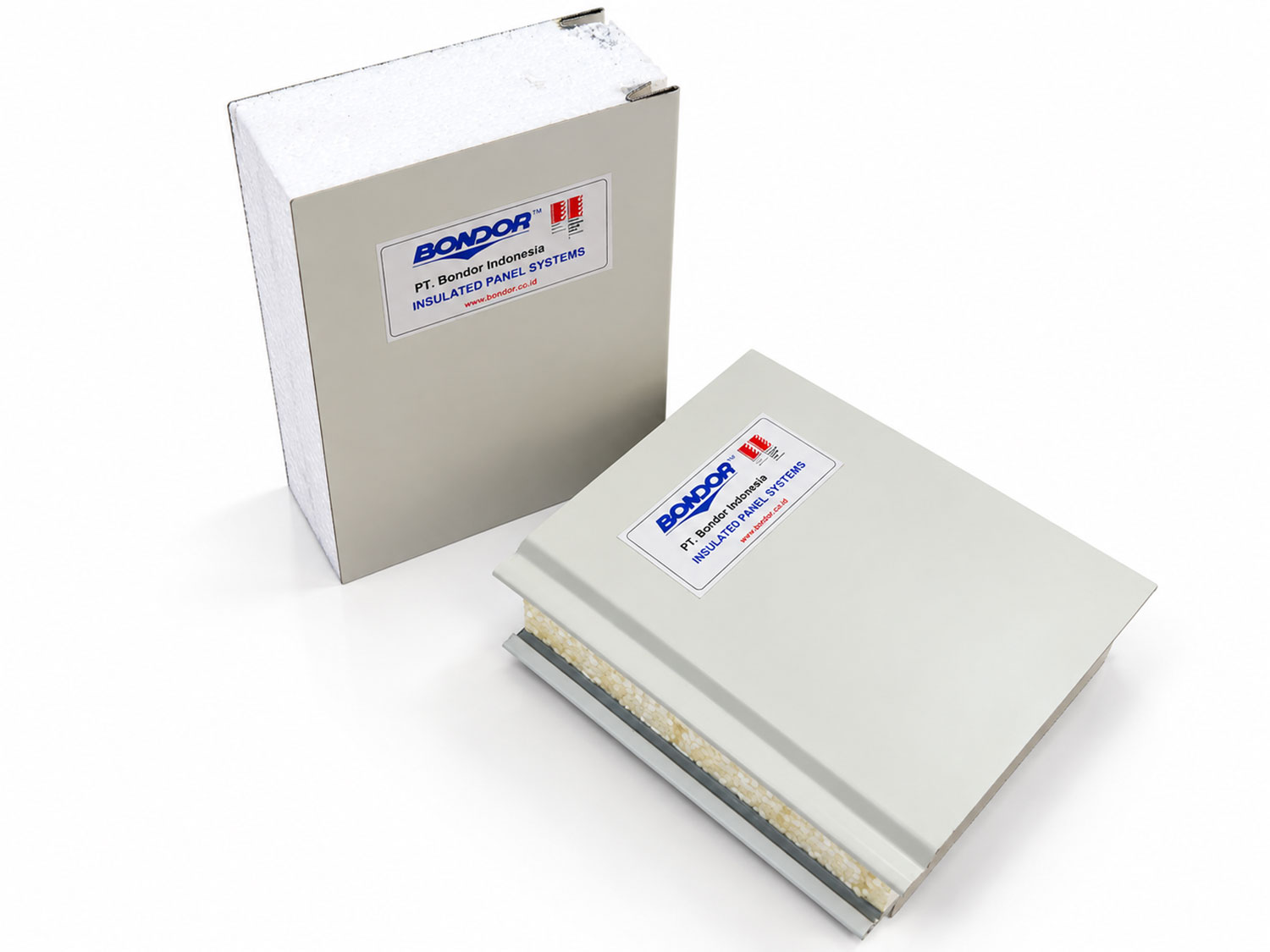

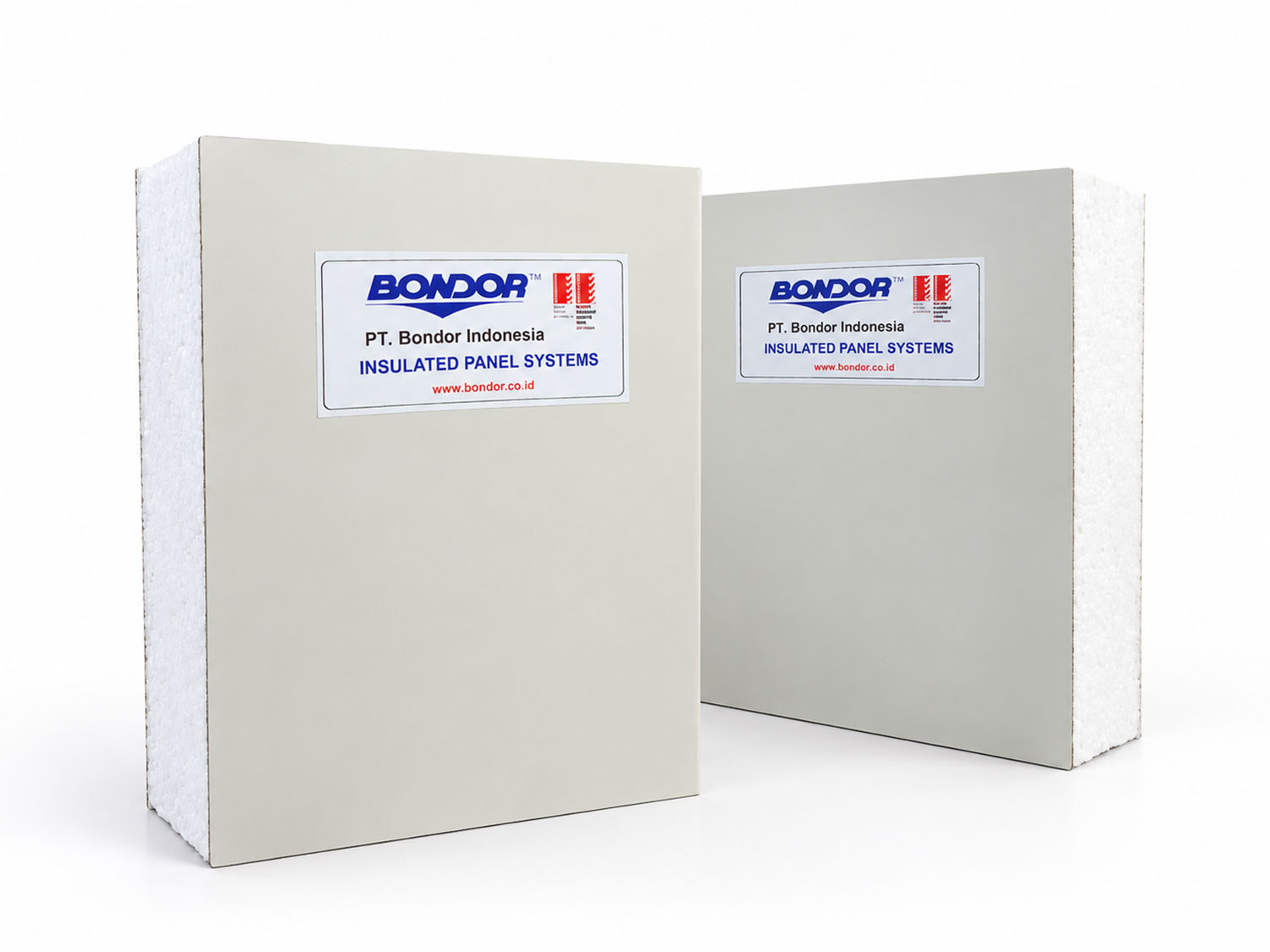

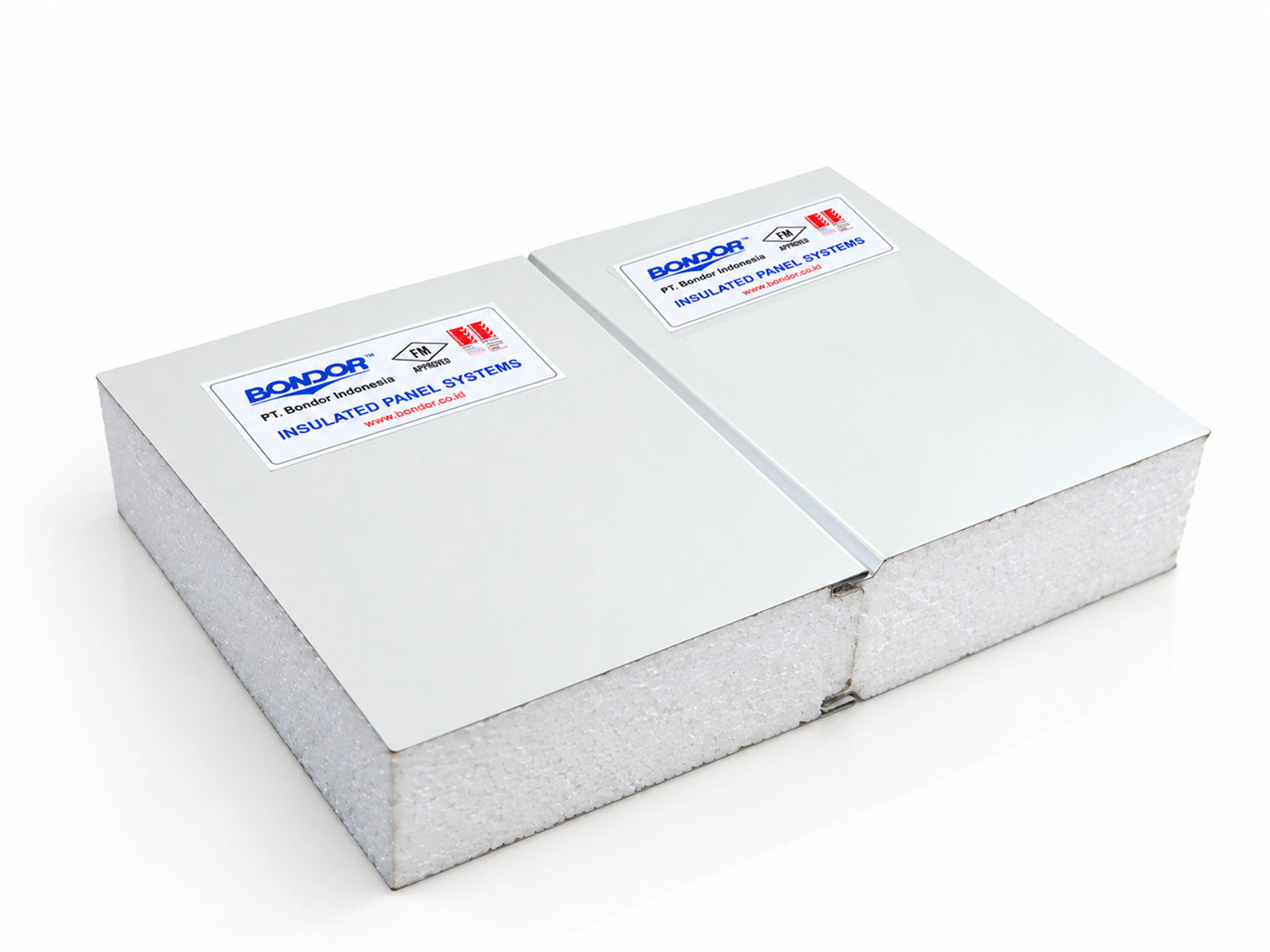

EPS Panel

The self-extinguishing, fire-retardant EPS Panel foam is manufactured from 100% virgin bead and oven-cured after manufacture to ensure the resulting blocks are completely dry and free from all residual pentane.

EPS Panel is a lightweight, CFC-free, non-brittle, closed cell insulator with more consistent thermal performance over time. It has a high dimensional stability and low water vapor transmission.

A special chemical coated to the Expanded Polystyrene beads (raw material) distinguished it from standard/common EPS Panel. Fire-Retardant EPS Panel is a self-extinguishing, non-combustible material.

Fire-retardant EPS Panel with a density of 15 kg/m3 is used for clean rooms, food processing facilities and modular buildings, while the 20 kg/m3 is used for industrial and commercial cold storage.

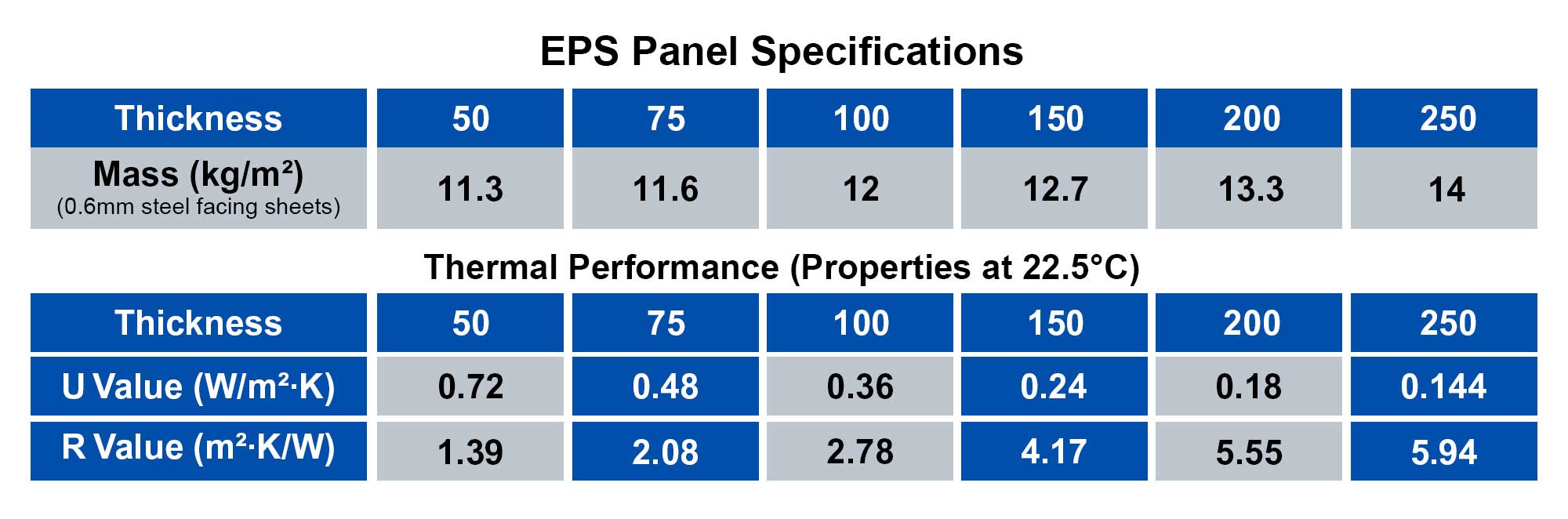

Core

Width (cover mm)
Thickness (mm)
Length
Exterior Facing Skin
Internal Facing Skin
Standard Colors
Joint System
Finishes
Type of Skin
EPS
(Expanded Polystyrene)
1,160
50, 75, 100, 125, 150, 200, 250
Up to 12 meters
0.5mm, 0.6mm G300 CRP Steel
0.5mm, 0.6mm G300 CRP Steel
Off White
Slip Joint
Plain, Ribbed, Diamond
Anti Bacterial (AB)
Food Grade (FG)
Xterior Roof and Wall (XRW)

Features and Advantages

  • Fire retardant
  • Meets safety requirements
  • Energy saving
  • Longer lifetime
  • Resistant to termites and rodents
  • Customized design
  • Easy to install saving cost of installation time
  • High performance on insulated panel
